Development & Concept

In 1985, at the height of the race replica boom, Yamaha decided to go against the spirit of the time, when launching the single-cylinder SRX600. Although positioned as the successor to the rather classic yet dull SR400, a torquey 608cc four-valve SOHC single-cylinder engine and the compact chassis with its rigid double-cradle steel frame made the sporty SRX600 a completely different beast, with little to no relation to its predecessor.

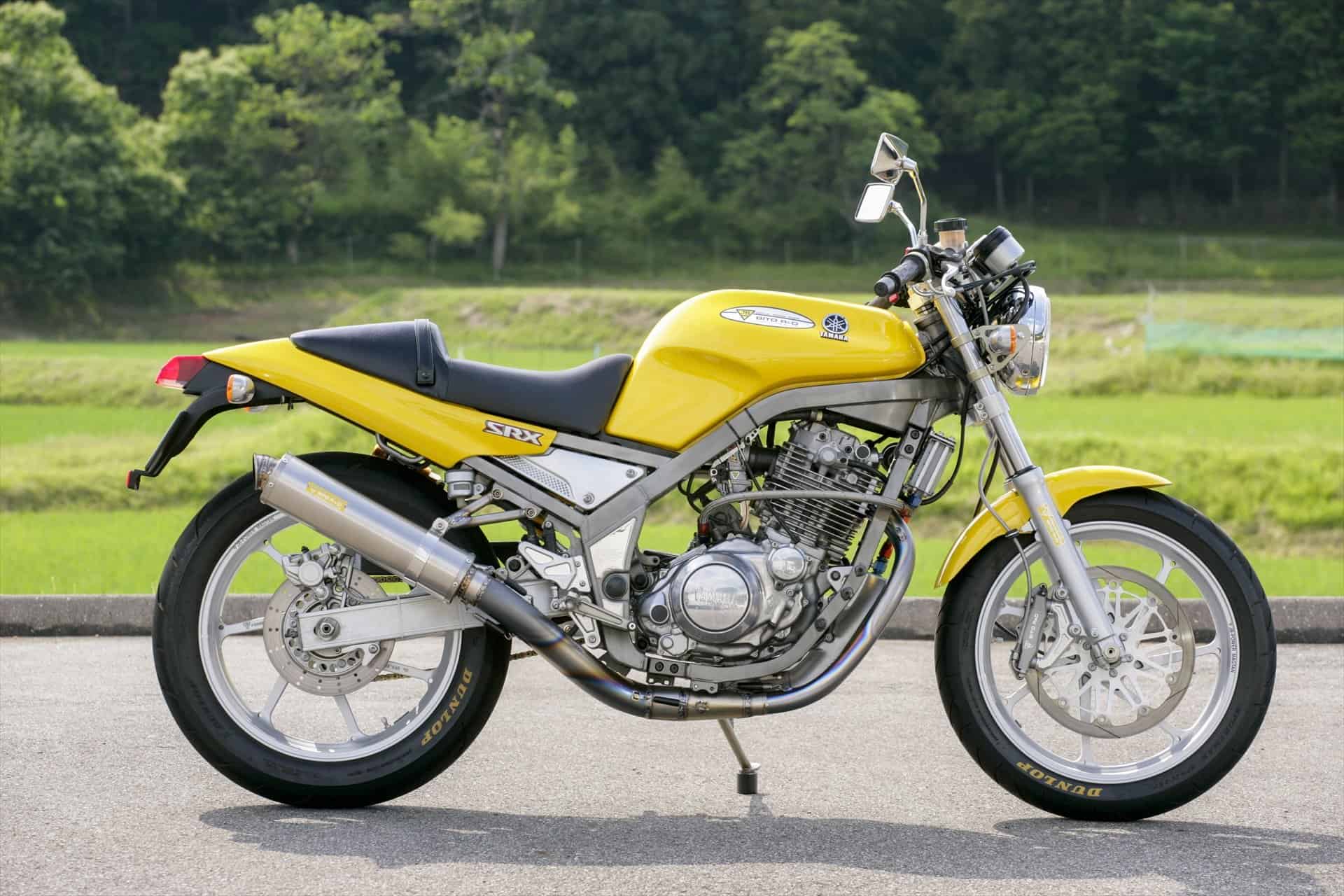

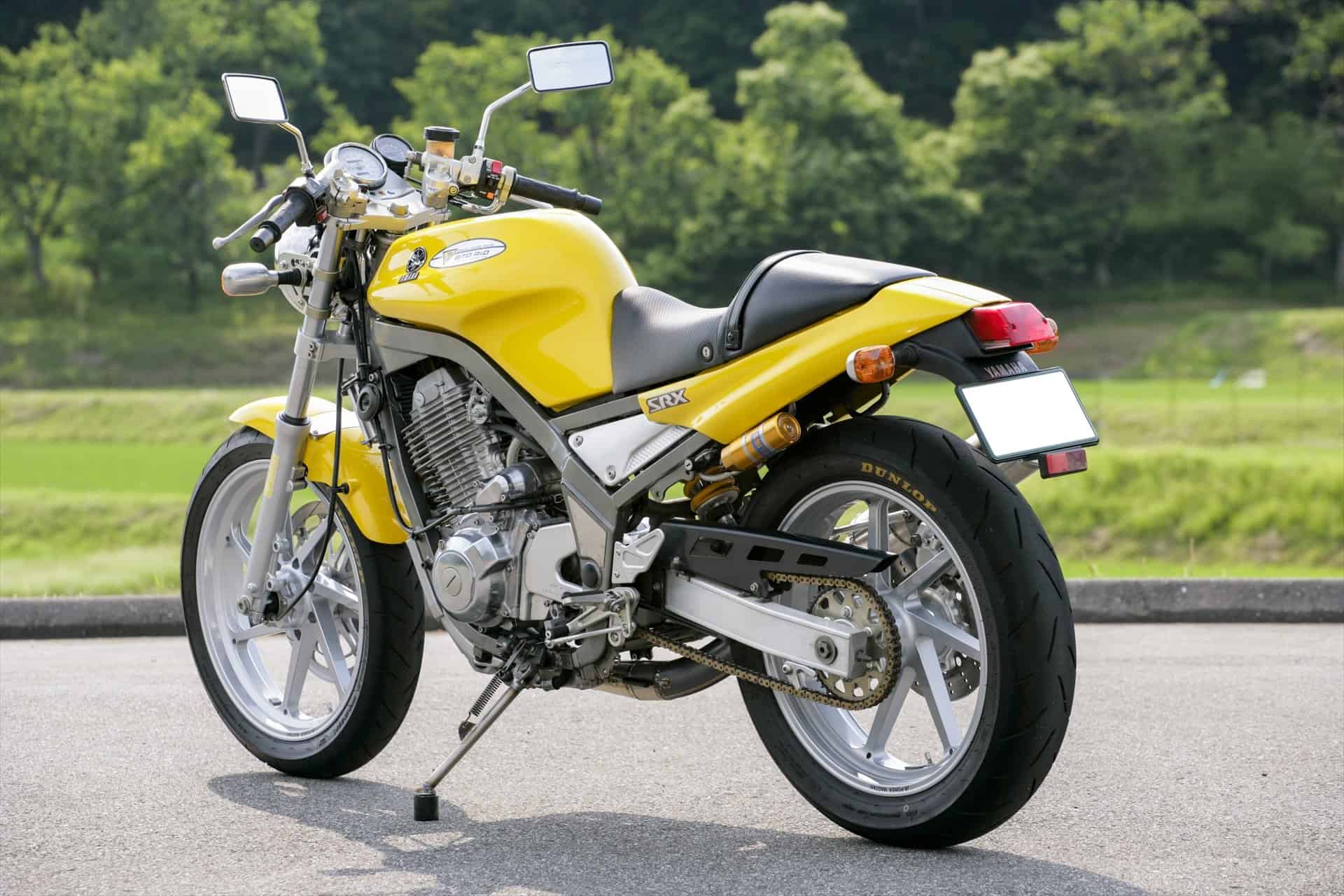

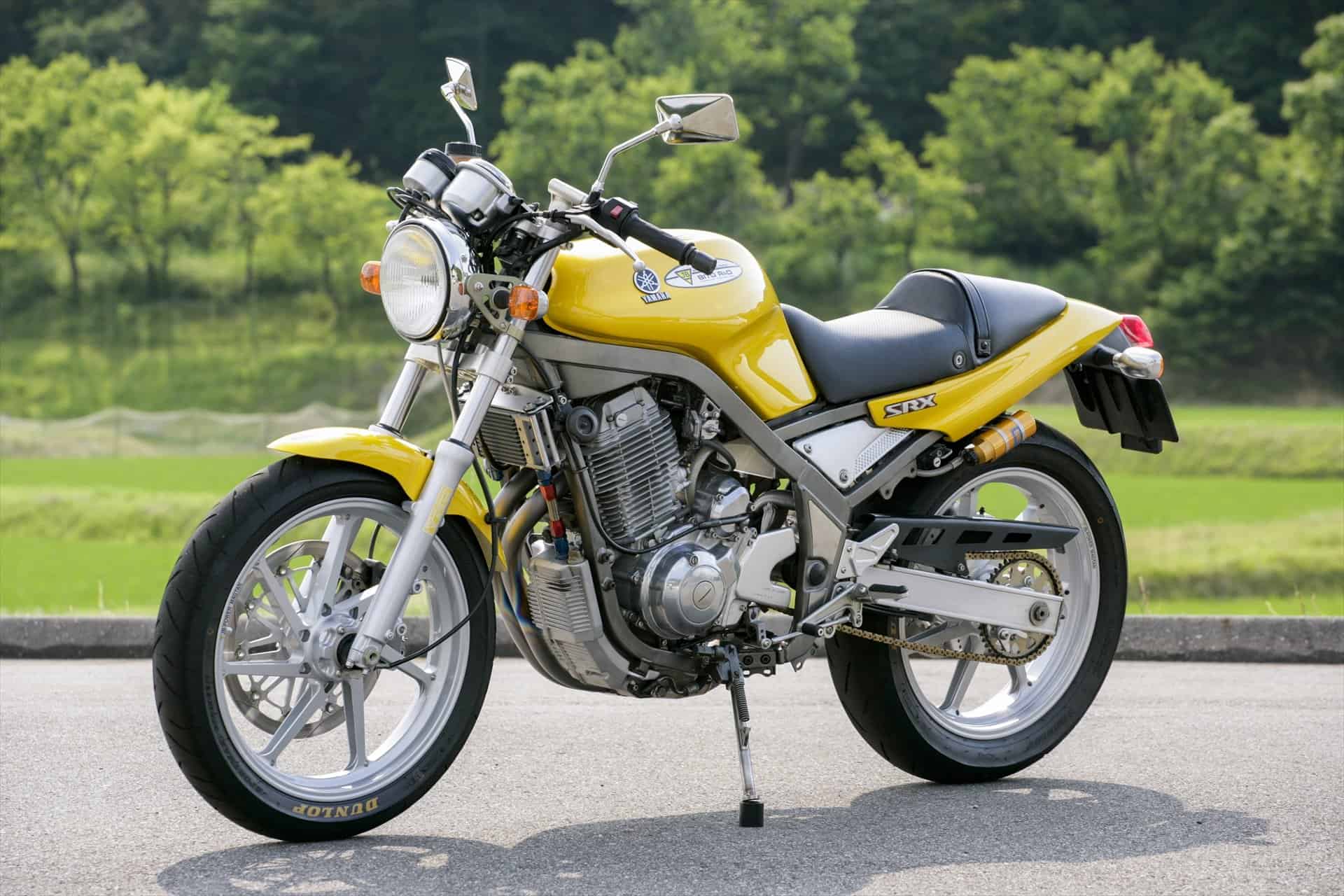

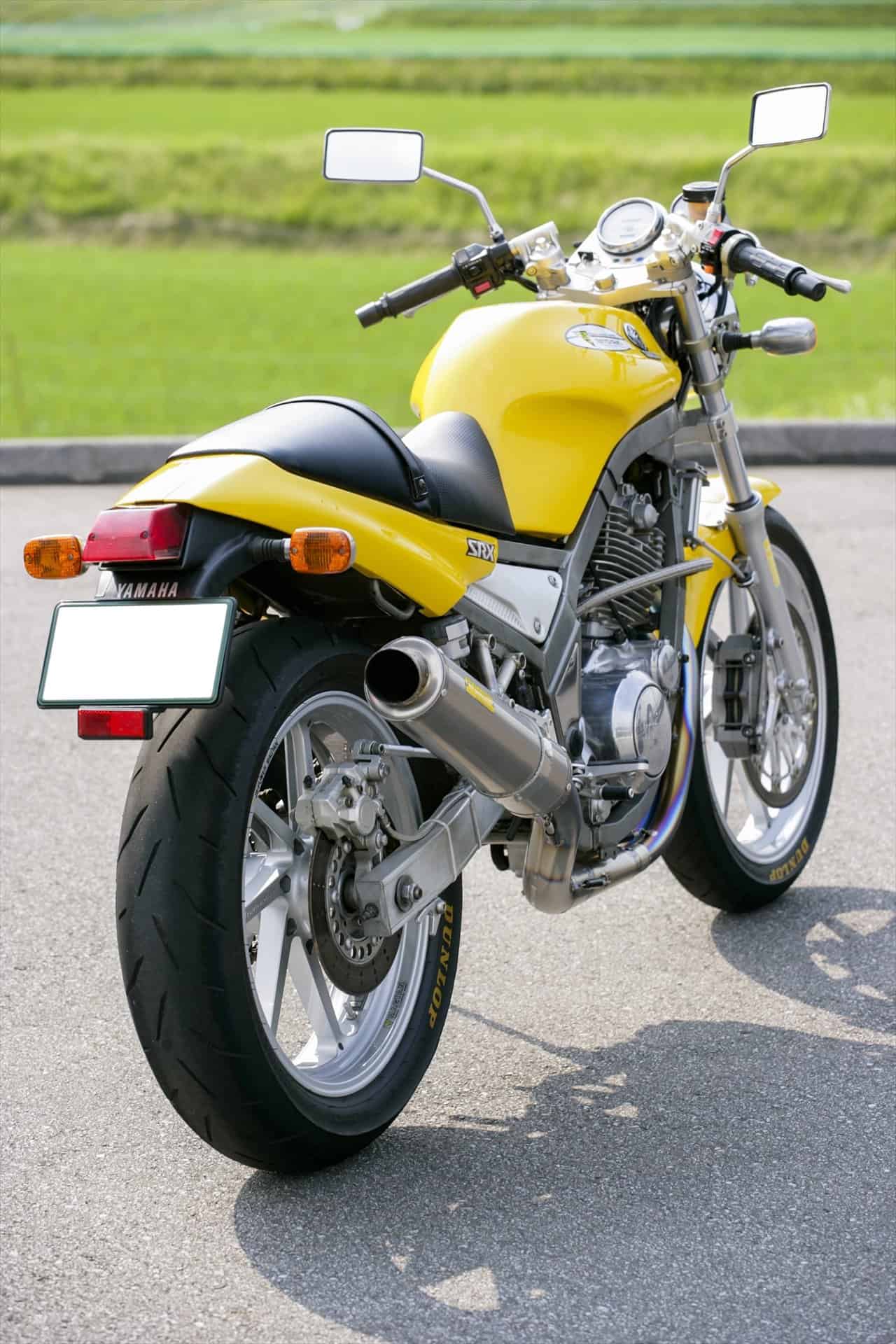

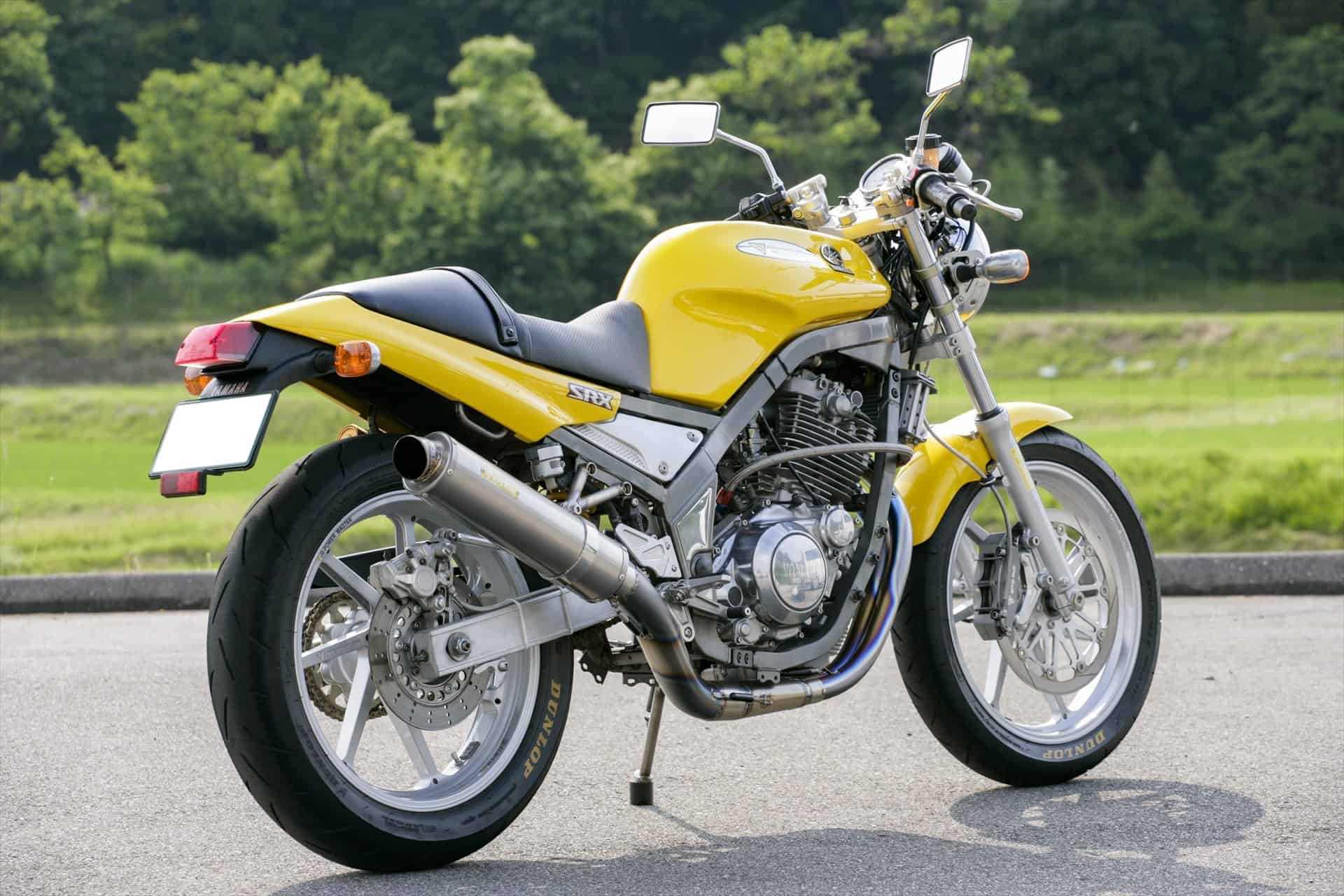

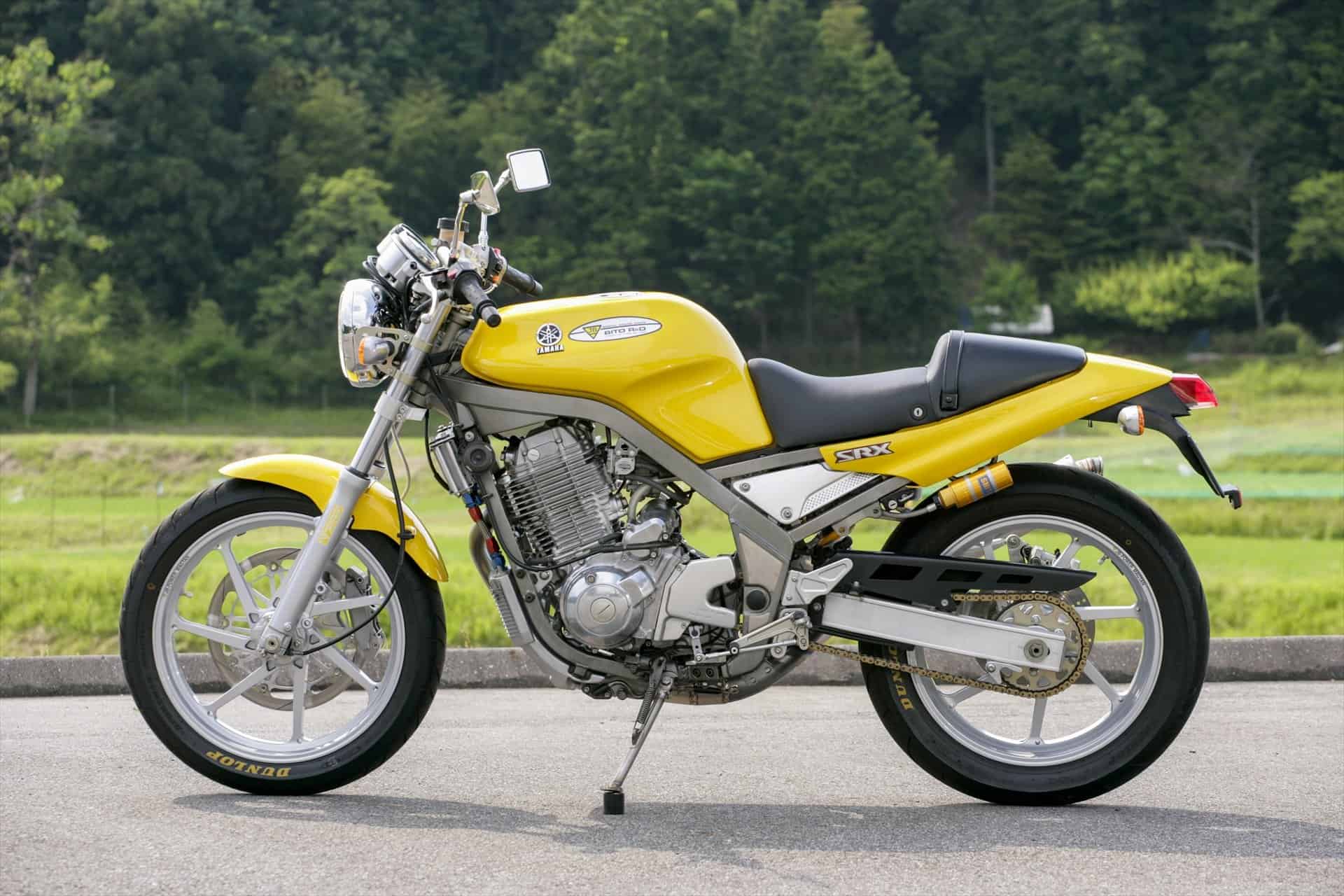

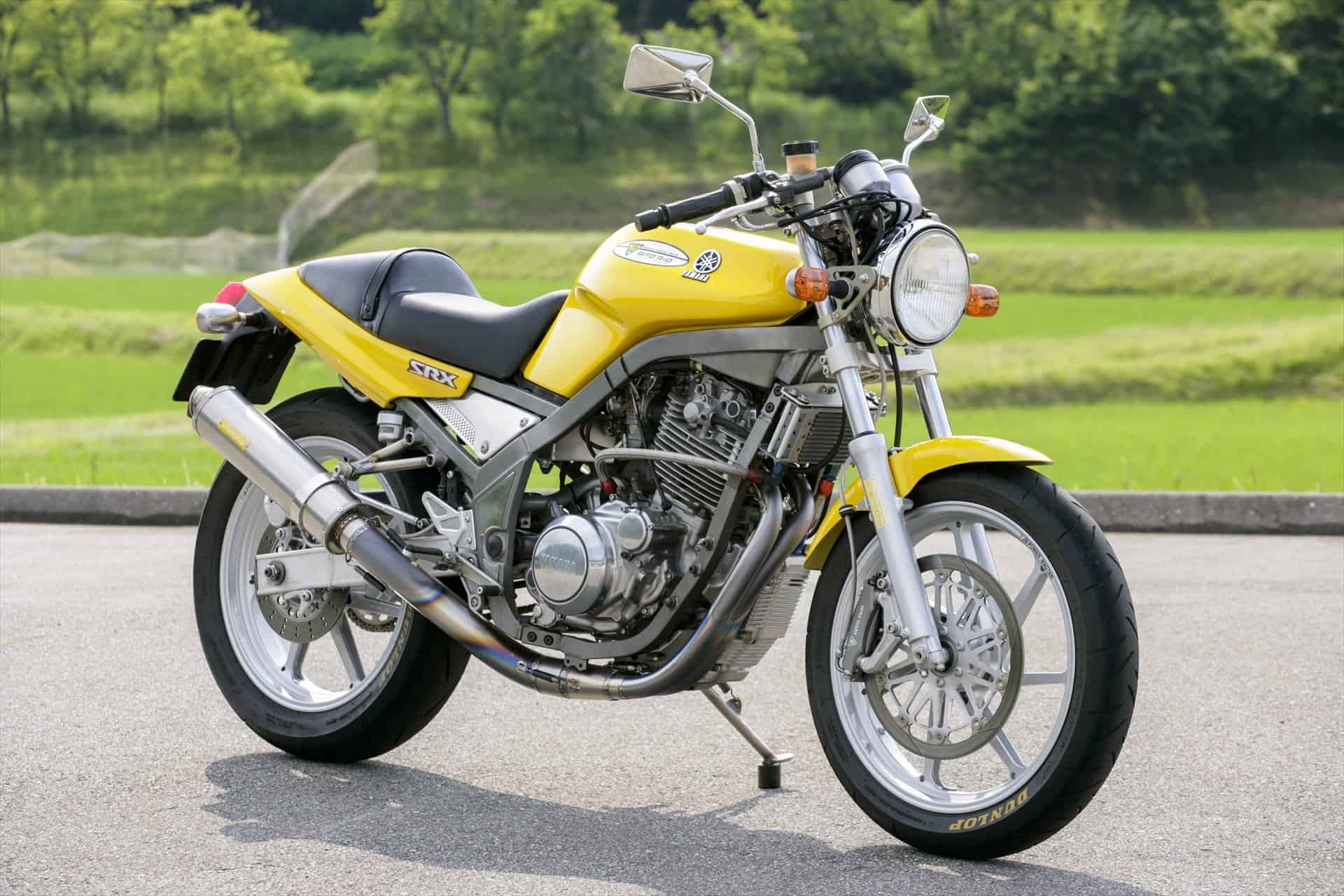

Enticed by the huge potential BITO R&D began with the development of our all the more sporty and powerful JB-POWER SRX600 Complete Machine. We installed a big bore piston kit, FCR carburetor, and thin-walled ultra-light titanium exhaust system to improve weight and engine performance. JB MAGTAN wheels additionally reduce weight and the riding position was optimized by changing the rear set and seat shape.

Although the JB special tuned SRX has the vigorous potential to shoot forward like an arrow, regardless of the speed, 18inch MAGTAN wheels and the powerful JB brake system provide outstanding control and safety even when pushing the limits. It will obediently follow the riders’ directions, creating a sense of unity, like man and machine have become one.

Features

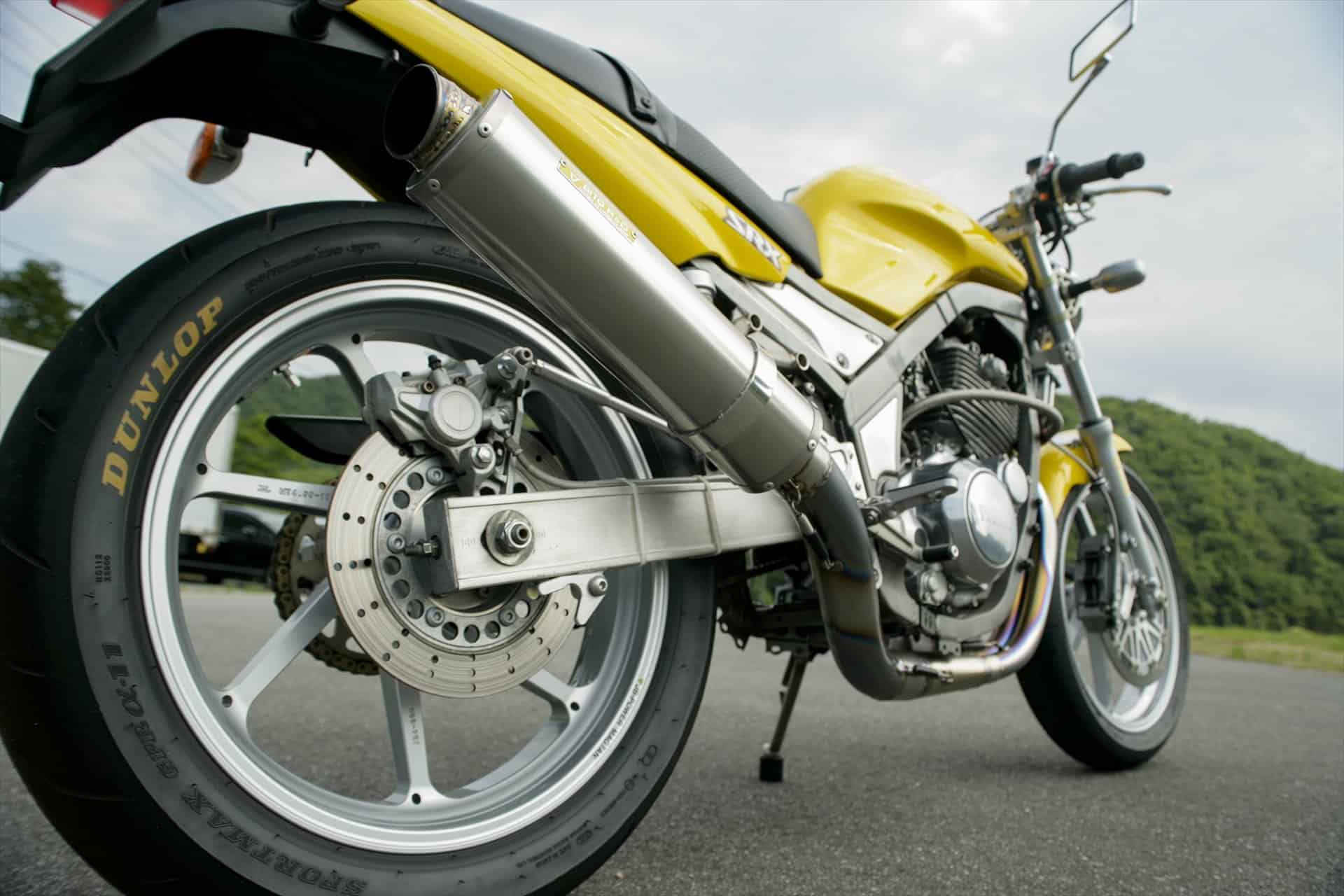

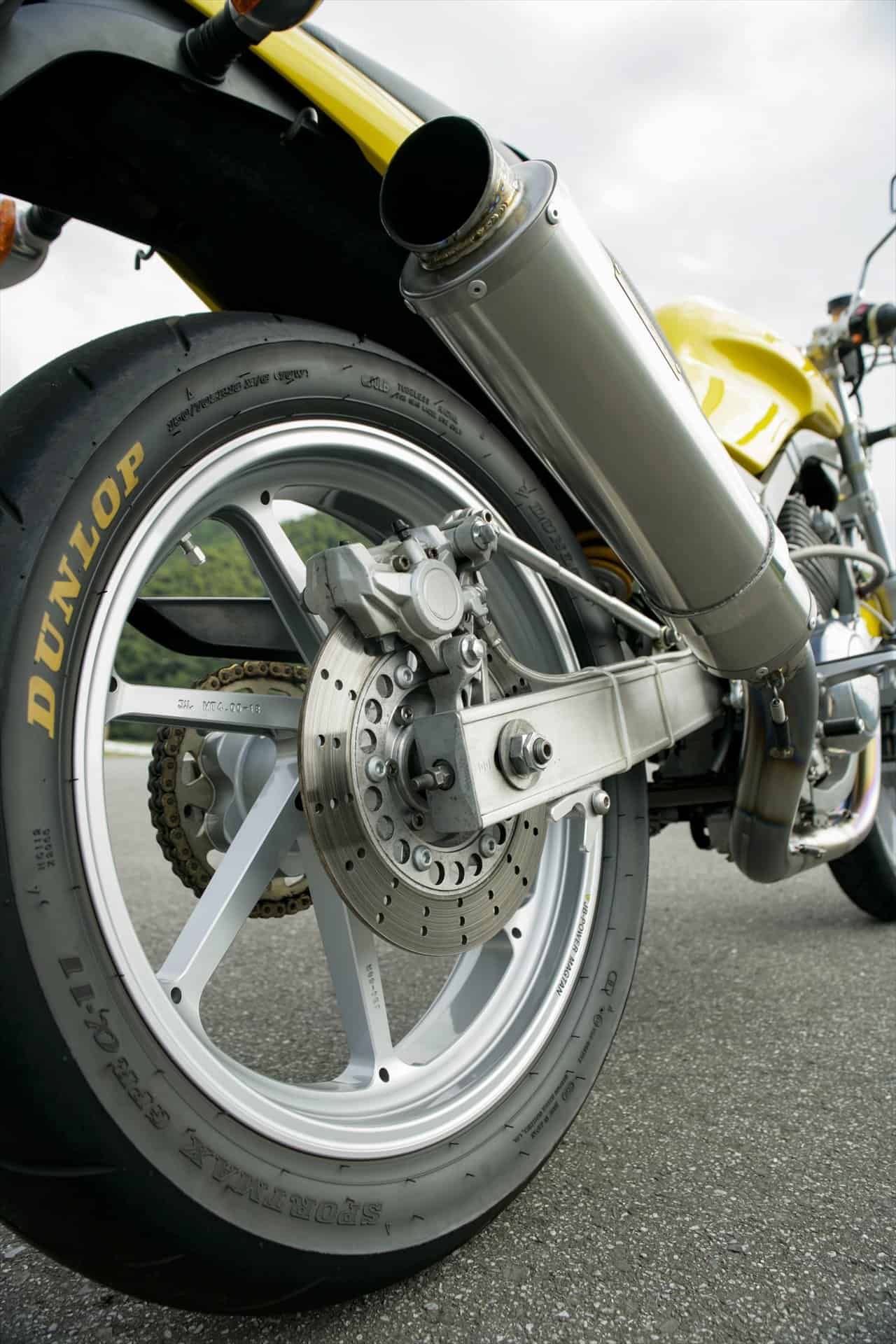

DUNLOP

SPORTMAX a-14

150/70ZR18

JB-POWER

MAGTAN JB4

4.00-18 Silver

Sprocket 428-47

JB-POWER

Milled Aluminium Racing Stand Hook



DID

Gold Chain 428

JB-POWER

Titanium Side Stand

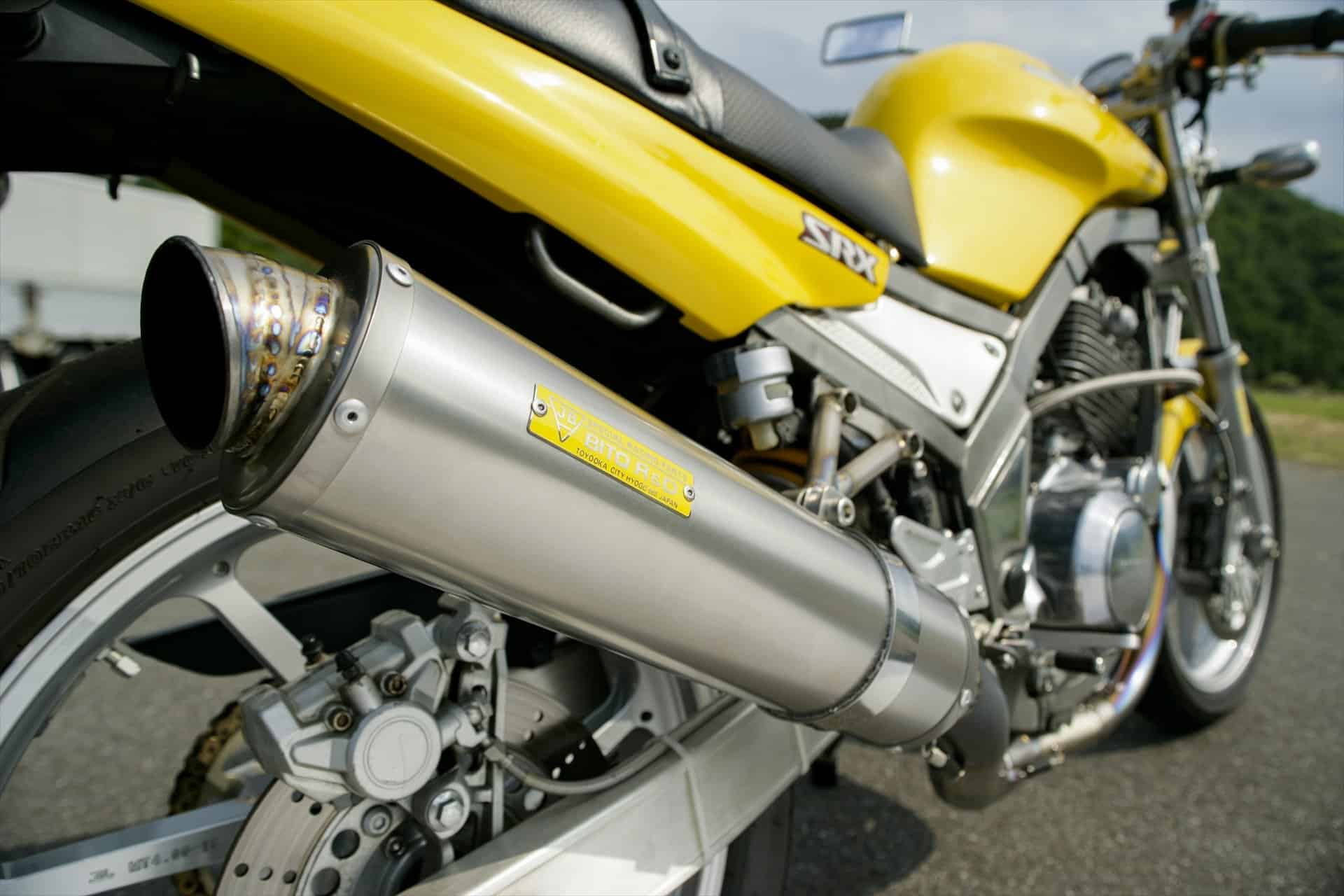

JB-POWER

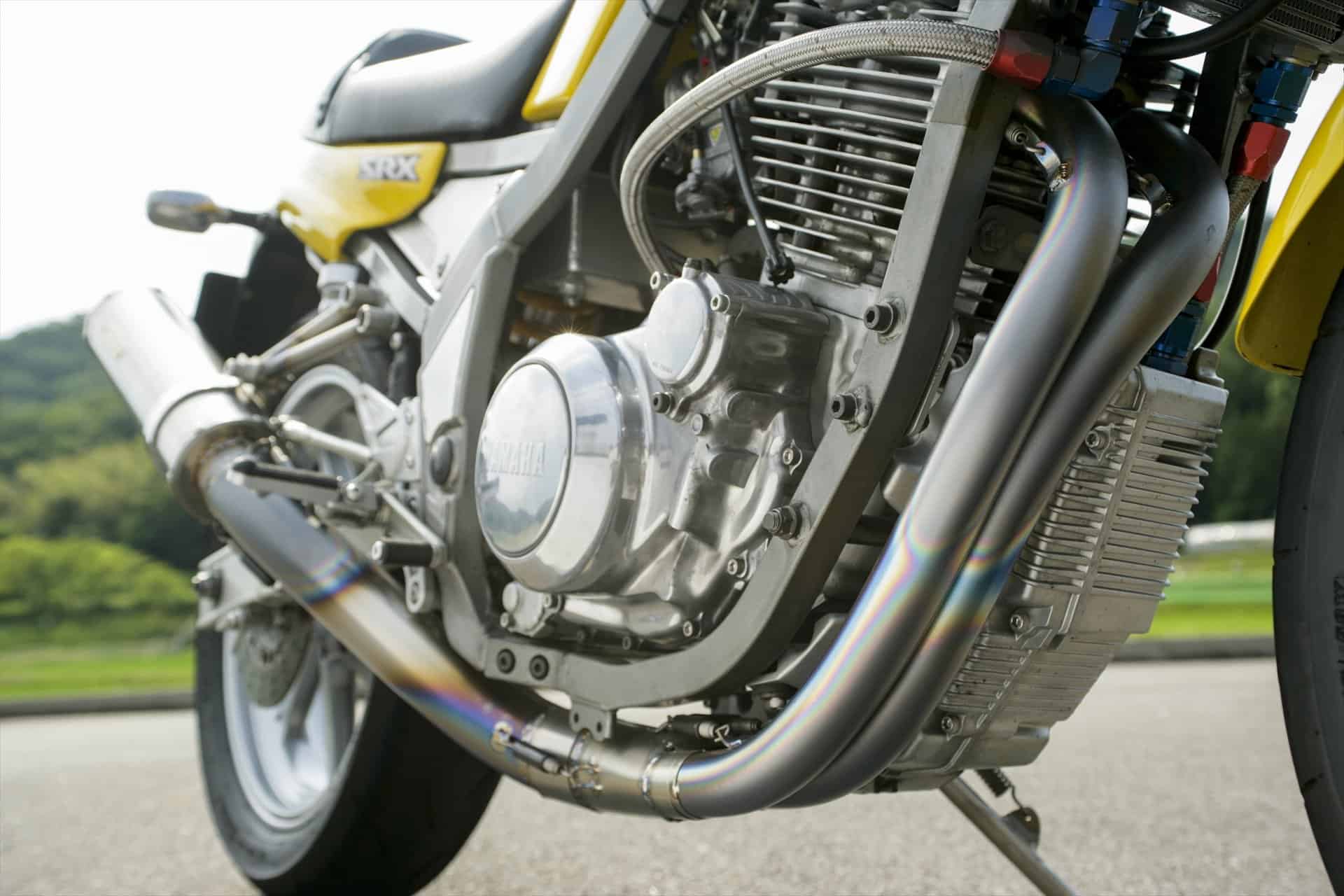

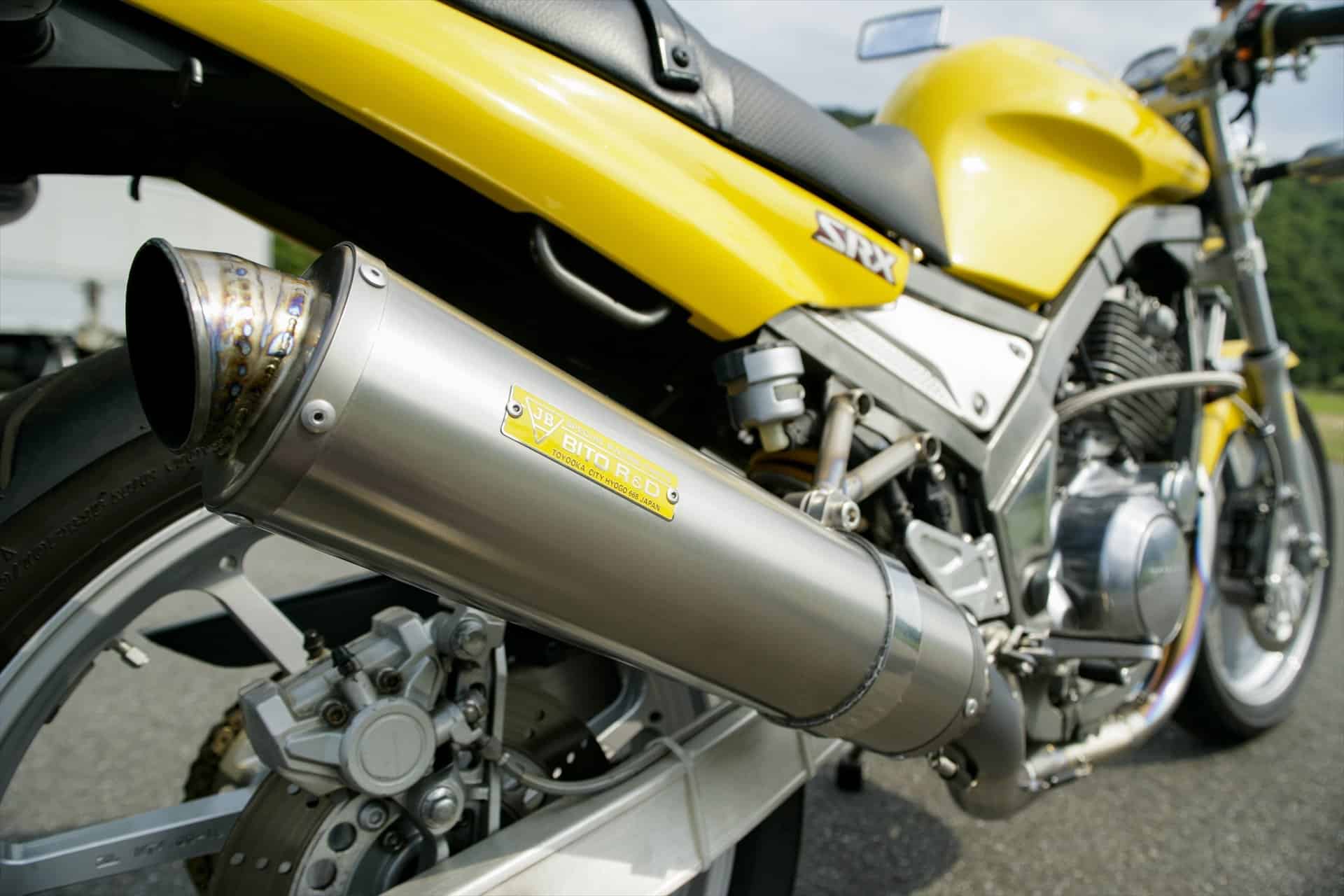

Hand-Bend Titanium Exhaust

System (2 into 1, Titanium

Silencer)

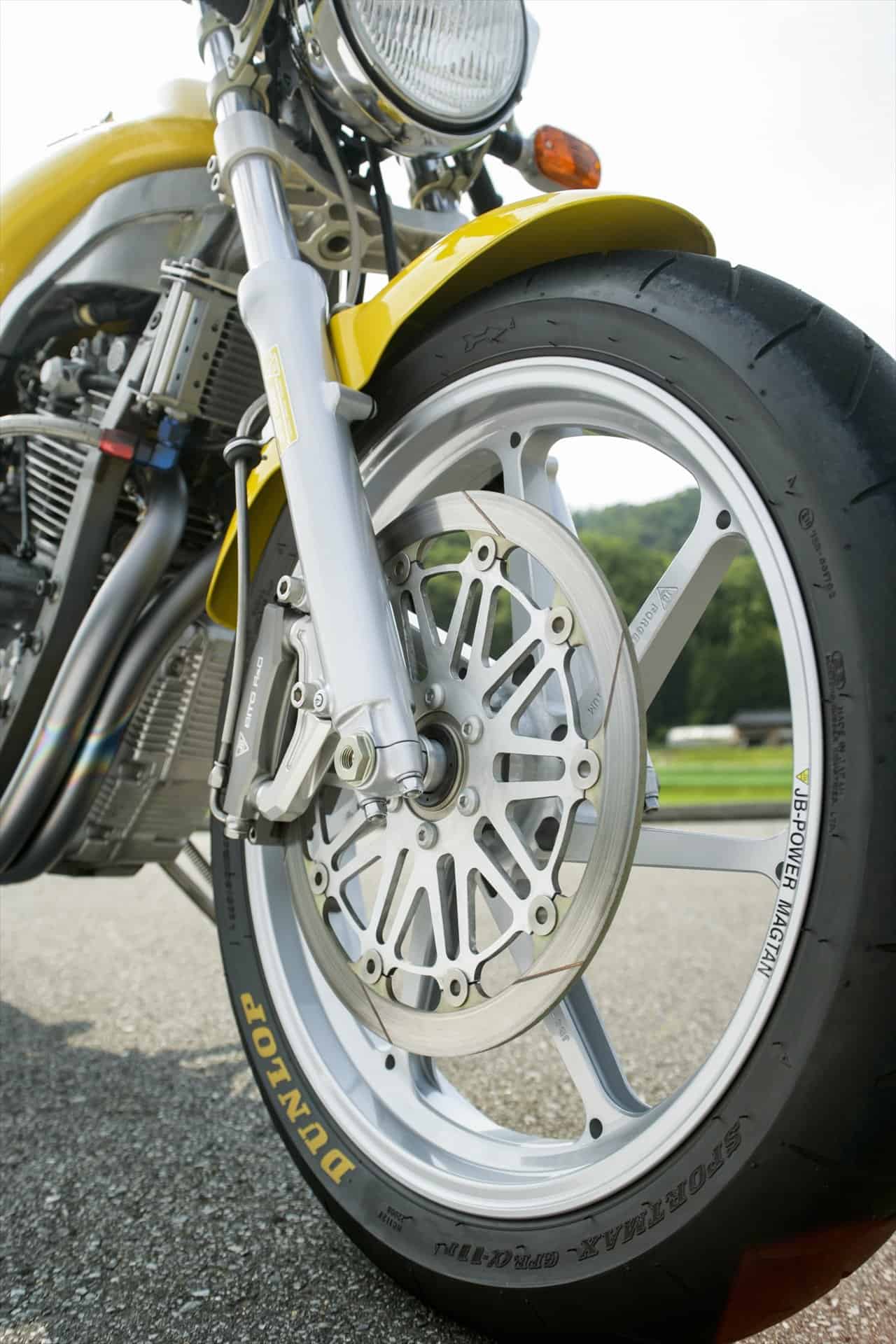

DUNLOP

SPORTMAX a-14

110/80ZR18

JB-POWER

MAGTAN JB4

3.00-18, Silver

JB-POWER

Hollow Chromoly Front Axle

Shaft (Φ15mm)

JB-POWER

Radial Mount Brake Caliper

6POT (Brake Pads Included)

Cast Iron Front Brake Disc

(Φ320mm, 6POT)

Milled Aluminium Radial Brake

Caliper Bracket (for JB Radial

Mount Caliper)

GOODRIDGE

Stainless Mesh Hose

EARL’S

Stainless Fittings



JB-POWER

Milled Aluminium Fender

Bracket (Silver Anodized)



JB-POWER

Special Frong Fork Φ38mm

(Total Length 815mm, Silver

Bottom)

JB-POWER

Oil Cooler Kit 13 Row (Below

Tank, Fitting, Hose, Adapter ,

Bracket)

JB-POWER

Special Tuned Engine

Displacement 660cc

Compression Ratio 12.0:1

Cylinder Liner

Liner exchange, Boring, Uper

Case Honing

Special Head Porting

JB-POWER COSWORTH

Forged Aluminium Piston Kit

Φ100mm

YOSHIMURA

Camshaft ST-2

FCC

Heavy Duty Clutch Set

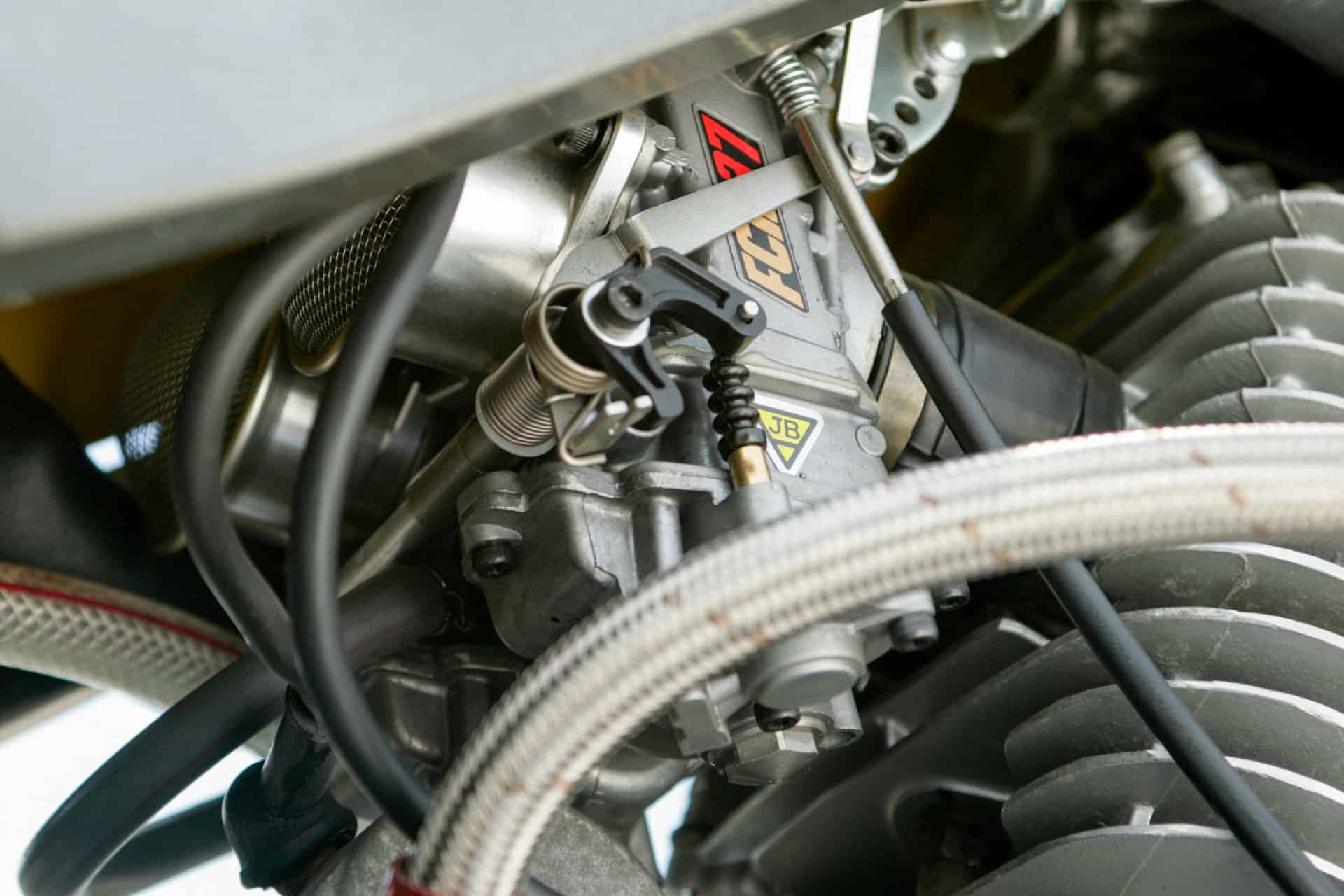

JB-POWER KEIHIN

FCR Carburetor Φ37

JB-POWER

Milled Aluminium Air Funnel

(35mm, Stainless Steel Net)



JB-POWER

Aluminium Oil Catch Tank

(Square Boxer Type)



JB-POWER

Milled Aluminium Heel Guard



JB-POWER

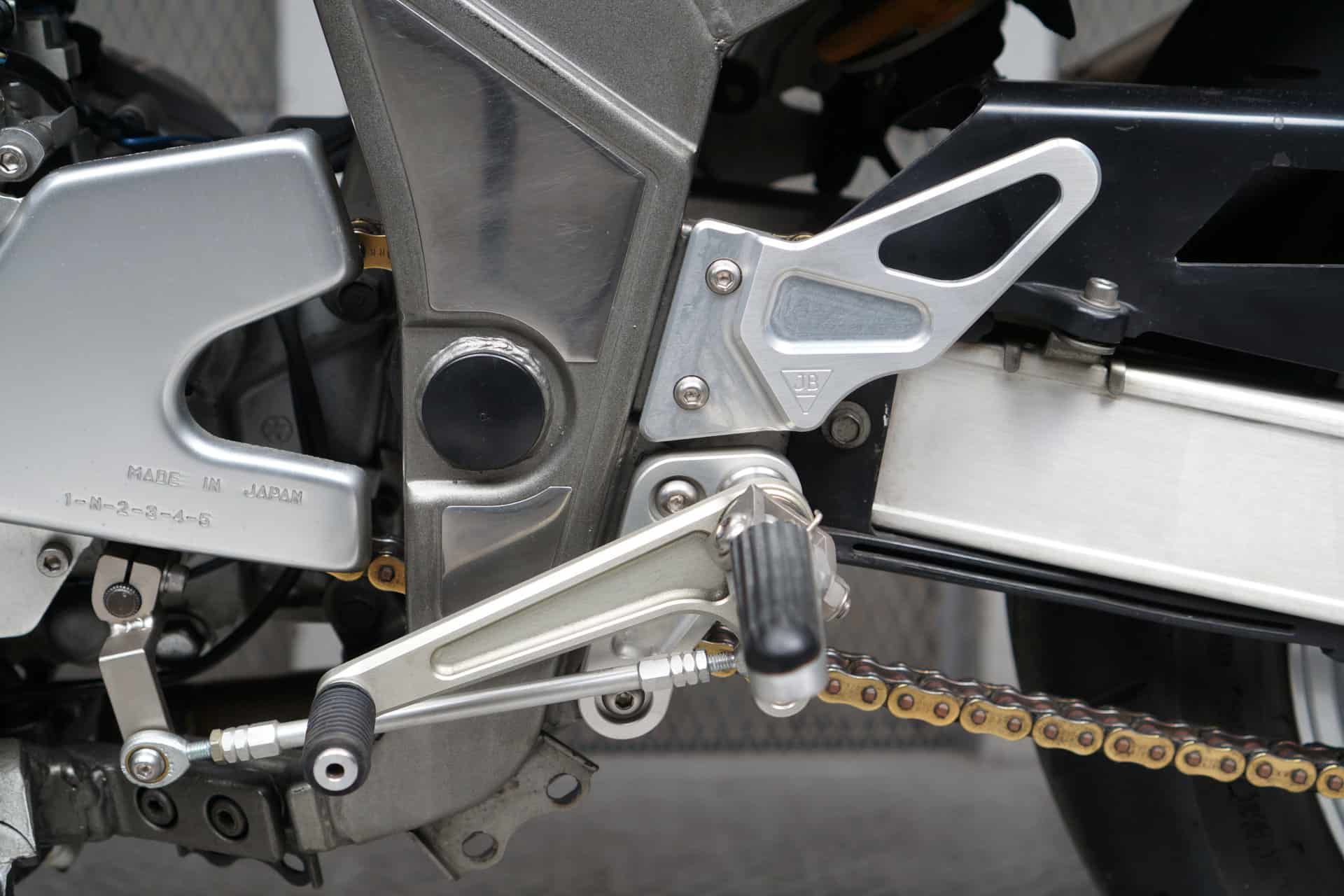

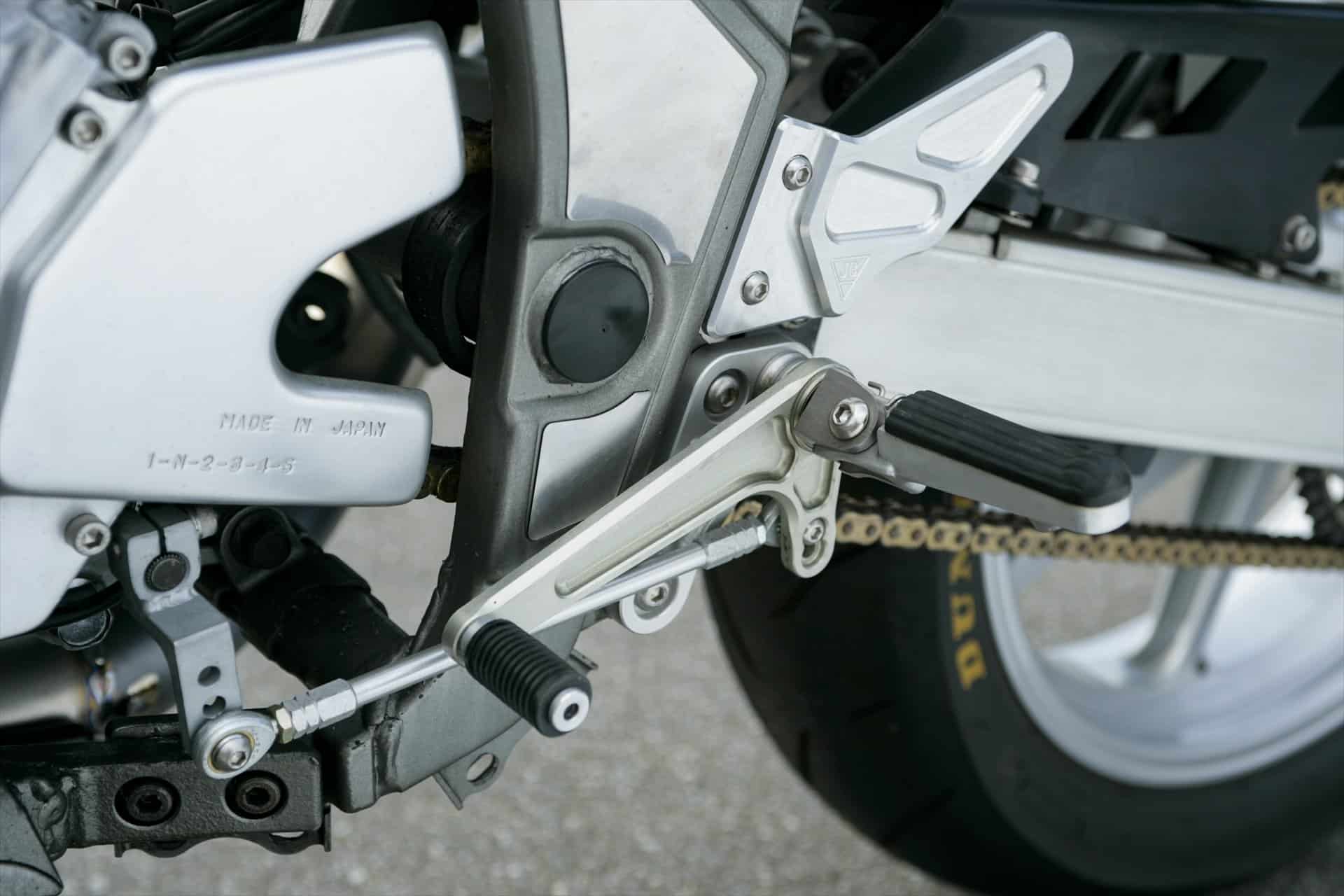

Milled Aluminium Riding Step

Kit [Rear Set] (5mm Rear,

20mm Up)



JB-POWER

Milled Aluminium Torque Rod



JB-POWER

Titanium Silencer Bracket

JB-POWER

Titanium Silencer Bracket

OHLINS

Rear suspension



JB-POWER

Seat Cover Exchange and

Foam Modification



JB-POWER

Milled Aluminium Head Light

Bracket (Φ38mm, Hard

Anodized)

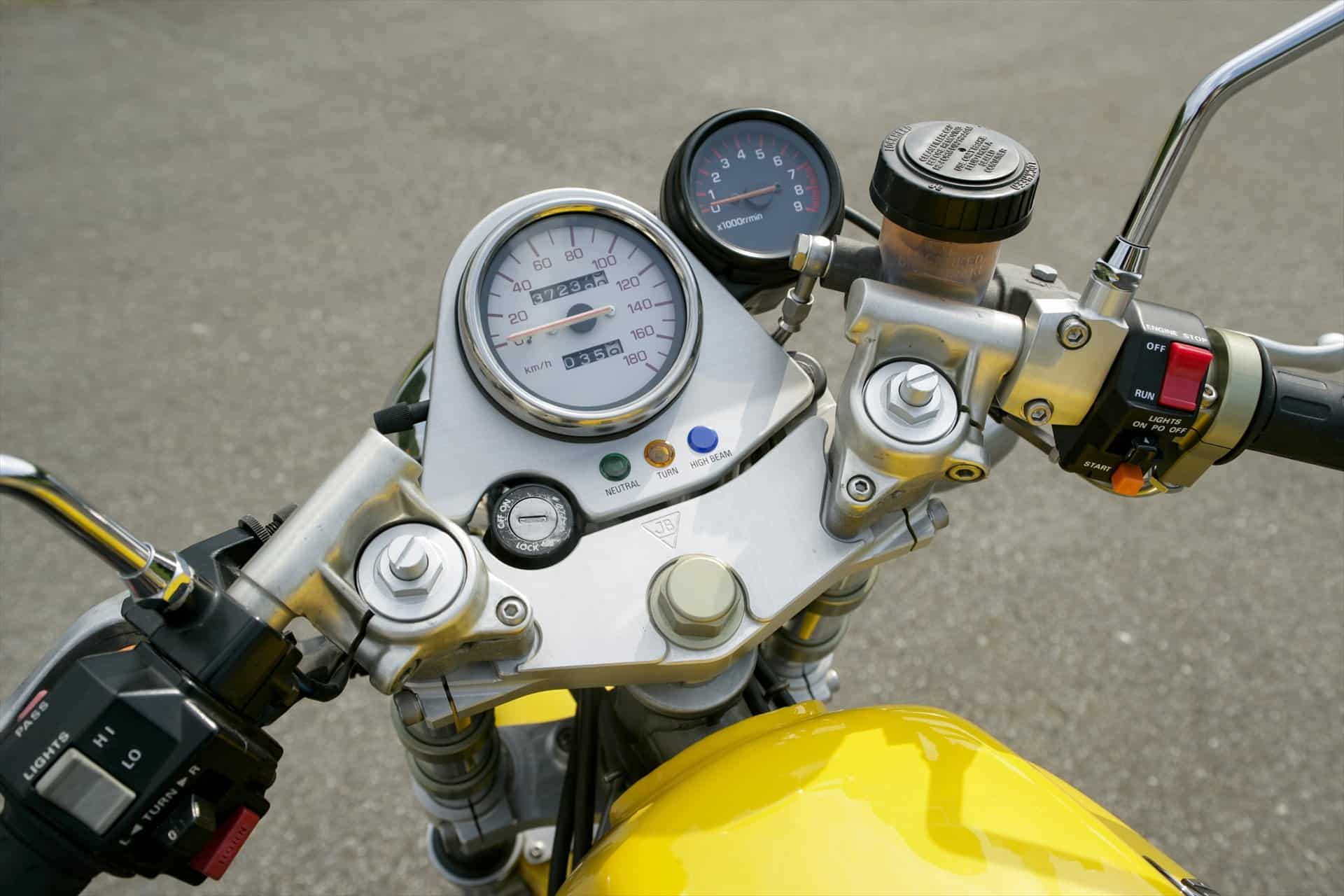

JB-POWER

Milled Aluminium Fork Bridge

(Φ38mm, Offset 35mm, Silver

Anodized)



JB-POWER

Throttle Holder & Wire Set

Mirror Holder (Silver)

AP-RACING

Brake Master Cylinder CP3125-

2 (Switch Included)
